Referencia: R8N87A
Marca: HP

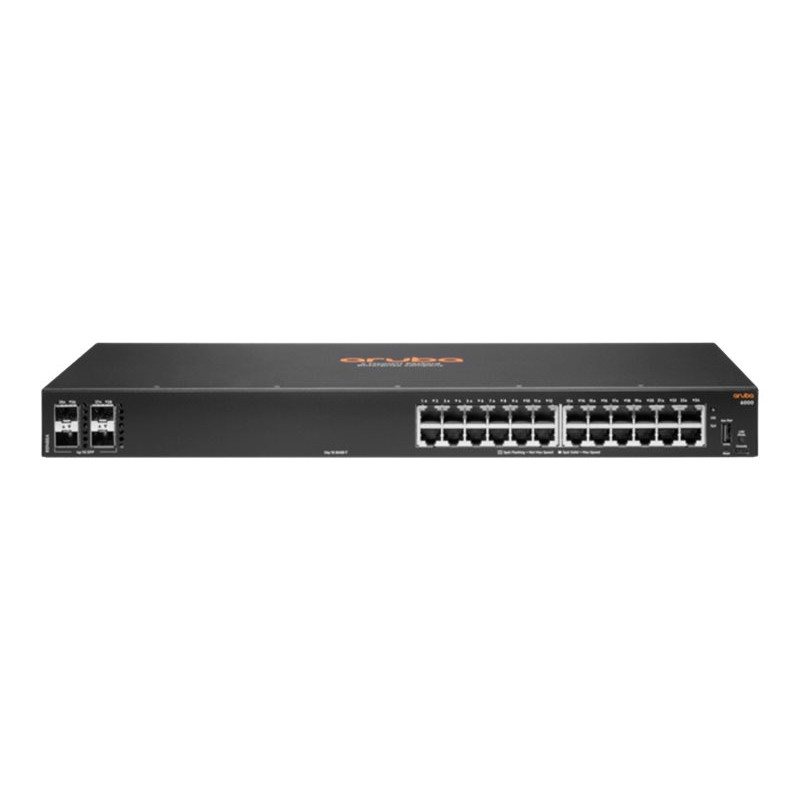

ARUBA 6000 24G CL4 4SFP CPNT
HPE Aruba 6000 24G Class4 PoE 4SFP 370W Switch - Conmutador - Gestionado - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - flujo de aire de lado a lado - montaje en rack - PoE (370 W)
Alimentación | |
Dispositivo de alimentación | Fuente de alimentación eléctrica |
Voltaje necesario | AC 100 - 127 V / 200 - 240 V (50/60 Hz) |
Consumo eléctrico en funcionamiento | 33 vatios |
Dimensiones y peso | |
Anchura | 44.2 cm |
Profundidad | 20.12 cm |
Altura | 4.39 cm |
Peso | 2.62 kg |
Diverso | |
Cumplimiento de normas | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, IEC 60825-1 Class 1, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, IEC 62368-1 Second Edition |
Expansión / Conectividad | |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x Gigabit LAN SFP ¦ 1 x USB Type A ¦ 1 x USB-C consola |
Garantía del fabricante | |
Servicio y mantenimiento | Garantía limitada - de por vida |
General | |
Tipo de dispositivo | Conmutador - 24 puertos - L3 - Gestionado |
Tipo de caja | Flujo de aire de lado a lado montaje en rack 1U |
Subtipo | Gigabit Ethernet |
Puertos | 24 x 10/100/1000 + 4 x Gigabit SFP |
Rendimiento | Tamaño del búfer de paquetes: 12.38 MB ¦ Capacidad: 41.6 Mpps ¦ Capacidad de conmutación: 56 Gbps ¦ Latencia (1 Gbps): 1.5 µs |
Capacidad | Interfaces virtuales conmutadas (SVI): 16 ¦ Entradas ARP: 1024 ¦ IPv4 routes (Unicast): 512 ¦ Rutas IPv6 (Unicast): 512 ¦ Grupos IGMP: 512 ¦ Grupos MLD: 512 ¦ Entradas ACL IPv4 (entrada): 256 ¦ Entradas ACL IPv6 (entrada): 128 ¦ Entradas ACL MAC (entrada): 256 |
Tamaño de tabla de dirección MAC | 8.192 entradas |
Admite carcasa Jumbo | 9198 bytes |
Protocolo de direccionamiento | IGMPv2, IGMP, IGMPv3 |
Protocolo de gestión remota | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, CLI, ICMP, DHCP, RADIUS |
Algoritmo de cifrado | SSL |
Método de autentificación | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Características | Control de flujo, soporte BOOTP, soporte ARP, soporte VLAN, soporte DiffServ, soporte IPv6, soporte SNTP, sFlow, compatible con MSTP, compatible con TFTP, compatible con ACL, rastreador MLD, TPM, Compatible con LACP, con LLDP, cliente DHCP, MIB, NDP, compatibilidad con SNMP, ICMP, cliente DNS, LLDP-MED, UDP, RSTP, direccionamiento IPv6, admite UDP, ASM |
Cumplimiento de normas | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az |
Procesador | 1 x ARM A9: 1.016 GHz |
Memoria RAM | 4 GB DDR3 SDRAM |
Memoria Flash | 16 GB |
Parámetros de entorno | |
Temperatura mínima de funcionamiento | 0 °C |
Temperatura máxima de funcionamiento | 45 °C |
Ámbito de humedad de funcionamiento | 15 - 95% (sin condensación) |
Temperatura mínima de almacenamiento | -40 °C |
Temperatura máxima de almacenamiento | 70 °C |
Ámbito de humedad de almacenamiento | 15 - 90% (sin condensación) |
