Alimentación |
Dispositivo de alimentación | Fuente de alimentación eléctrica |
Voltaje necesario | CA 100-240 V (50/60 Hz) |
Consumo eléctrico en funcionamiento | 32.7 vatios |
Dimensiones y peso |
Anchura | 44.2 cm |
Profundidad | 26.82 cm |
Altura | 4.39 cm |
Peso | 4.19 kg |
Diverso |
Cumplimiento de normas | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, EN55024:2010:A1, IEC 62368-1 Second Edition |
Expansión / Conectividad |
Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE Class 4 - 370 W ¦ 4 x Gigabit LAN SFP ¦ 1 x USB Type A ¦ 1 x USB-C consola |
Garantía del fabricante |
Servicio y mantenimiento | Garantía limitada - de por vida |
General |

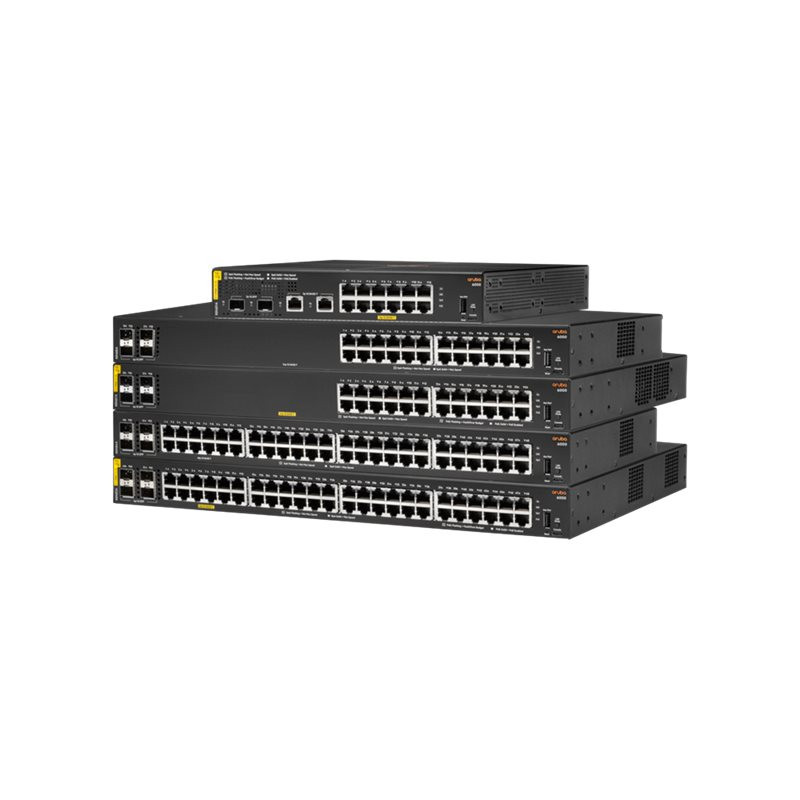

Tipo de dispositivo | Conmutador - 24 puertos - Gestionado |
Tipo de caja | Flujo de aire de lado a lado montaje en rack 1U |
Subtipo | Gigabit Ethernet |
Puertos | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
Alimentación por Ethernet (PoE) | PoE |
Presupuesto PoE | 370 W |
Rendimiento | Tamaño del búfer de paquetes: 12.38 MB ¦ Capacidad: 41.6 Mpps ¦ Capacidad de conmutación: 56 Gbps ¦ Latencia (1 Gbps): 1.5 µs |
Capacidad | Interfaces virtuales conmutadas (SVI): 16 ¦ Entradas ARP: 1024 ¦ IPv4 routes (Unicast): 512 ¦ Rutas IPv6 (Unicast): 512 ¦ Grupos IGMP: 512 ¦ Grupos MLD: 512 ¦ Entradas ACL IPv4 (entrada): 256 ¦ Entradas ACL IPv6 (entrada): 128 ¦ Entradas ACL MAC (entrada): 256 |
Tamaño de tabla de dirección MAC | 8.192 entradas |
Admite carcasa Jumbo | 9198 bytes |
Protocolo de direccionamiento | IGMPv2, IGMPv3 |
Protocolo de gestión remota | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
Algoritmo de cifrado | SSL |
Método de autentificación | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Características | Control de flujo, soporte BOOTP, soporte ARP, soporte VLAN, soporte DiffServ, soporte IPv6, soporte SNTP, sFlow, admite Multiple Spanning Tree Protocol (MSTP), soporte de Trivial File Transfer Protocol (TFTP), soporte de Access Control List (ACL), rastreador MLD, Trusted Platform Module (TPM), sin ventilador, Compatible con LACP, con LLDP, cliente DHCP, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), compatibilidad con SNMP, Internet Control Message Protocol (ICMP), cliente DNS, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), direccionamiento IPv6 |
Cumplimiento de normas | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
Procesador | 1 x ARM A9: 1.016 GHz |
Memoria RAM | 4 GB DDR3 SDRAM |
Memoria Flash | 16 GB |
Parámetros de entorno |
Temperatura mínima de funcionamiento | 0 °C |
Temperatura máxima de funcionamiento | 45 °C |
Ámbito de humedad de funcionamiento | 15 - 95% (sin condensación) |
Ámbito de humedad de almacenamiento | 15 - 90% (sin condensación) |
